Bystronic laser cutting machine is an advanced CNC laser processing system designed for high-precision cutting of sheet metal and industrial materials. Bystronic offers a comprehensive range of fiber laser cutting solutions — from high-performance ByStar Fiber systems with up to 15 kW laser power for thick plate cutting, to the compact BySmart Fiber series for efficient everyday fabrication. Unlike conventional cutting methods, laser technology delivers exceptional accuracy, speed, and flexibility, making it indispensable for metal fabrication, automotive manufacturing, electrical equipment production, and custom metal processing applications.
How a Bystronic Laser Cutting Machine Works
A Bystronic laser cutting machine operates by generating a highly focused laser beam that melts, burns, or vaporizes material along a programmed cutting path. The process begins with the laser source — typically a fiber laser — producing a high-energy beam. This beam is transmitted through a fiber optic cable to the cutting head, where it is focused through a lens to a spot size as small as 0.1 mm. The focused beam creates intense localized heating that melts the metal, while assist gas (nitrogen, oxygen, or compressed air) blows the molten material away from the kerf. The CNC control system precisely coordinates the motion of the cutting head along the X, Y, and Z axes, executing complex geometries with micron-level accuracy. The entire process is monitored and controlled through an intuitive touchscreen interface, enabling real-time parameter adjustments for optimal cutting quality.
1 Laser beam generation
2 Beam focusing & positioning
3 Material melting & removal
4 CNC-controlled precision cutting
Key Benefits for Metal Fabrication Operations
Manufacturers who integrate Bystronic laser cutting machines into their production lines realize significant improvements in operational efficiency and product quality. These systems are engineered for demanding industrial environments where precision, speed, and reliability directly impact business performance.
Unmatched Precision
Delivers positioning accuracy within ±0.05 mm and repeatability of ±0.02 mm, enabling production of complex geometries with tight tolerances and minimal secondary finishing.
High Processing Speed
Fiber laser technology enables cutting speeds up to 100 m/min, dramatically reducing cycle times and increasing throughput for high-volume production runs.
Material Flexibility
Processes a wide range of materials — carbon steel, stainless steel, aluminum, copper, brass — with thicknesses from 0.5 mm up to 30 mm, depending on laser power.
Automation Integration
Supports automated loading/unloading, material storage systems, and smart factory connectivity, reducing labor requirements and enabling lights-out manufacturing.
Bystronic Laser Cutting vs Other Metal Cutting Technologies
Selecting between a Bystronic laser cutting machine and other cutting methods depends on your application requirements for precision, speed, and material compatibility. Laser cutting outperforms plasma, waterjet, and CNC punching in critical areas for sheet metal fabrication.
| Feature |
Fiber Laser |
Plasma Cutting |
Waterjet Cutting |
| Cutting Accuracy |
±0.05 mm |
±0.5–1.0 mm |
±0.1–0.2 mm |
| Cutting Speed |
Very high (up to 100 m/min) |
High |
Moderate |
| Heat Affected Zone |
Very small |
Large |
None |
| Material Thickness |
0.5–30 mm |
5–150 mm |
1–200 mm |
| Edge Quality |
Excellent |
Moderate |
Very good |
Choose Bystronic laser cutting for applications requiring high precision, complex geometries, and efficient production of sheet metal parts up to 30 mm thick. Laser cutting delivers superior edge quality, minimal heat distortion, and the fastest processing speeds for most common metals. For very thick plates (50+ mm) or heat-sensitive materials, consider alternative technologies — but for the vast majority of metal fabrication operations, laser cutting is the optimal solution.
How to Select the Right Bystronic Laser Cutting Machine for Your Facility
When evaluating a Bystronic laser cutting machine for your metal fabrication operations, assess these critical specifications to match machine capabilities with your production demands.
Laser Power
Bystronic offers fiber lasers from 2 kW to 15 kW. Lower power (2–4 kW) suits thin materials (0.5–8 mm). Medium power (4–6 kW) handles most general fabrication (up to 12 mm). High power (10–15 kW) enables thick plate cutting (up to 30 mm) with maximum speed.
Cutting Area
Available sheet sizes include 3,048 × 1,524 mm (standard), 4,000 × 2,000 mm (large), and custom sizes. Select the cutting area that matches your largest typical parts to minimize material handling.
Automation Level
Options range from manual loading to fully automated systems with storage towers, load/unload stations, and production scheduling software. Higher automation reduces labor costs and enables 24/7 production.
Software Integration
Bystronic's BySoft software suite provides CAD/CAM programming, nesting optimization, and machine monitoring. Ensure compatibility with your existing production planning and ERP systems for seamless workflow integration.
Bystronic Laser Cutting Technology Overview
Bystronic offers a comprehensive portfolio of laser cutting solutions designed for different production requirements. The ByStar Fiber series represents the premium range with 10–15 kW laser power, advanced automation options, and the ability to cut thick plates up to 30 mm at maximum speed. The BySmart Fiber series is the versatile workhorse for everyday fabrication, offering 2–6 kW power with excellent price-performance ratio. Both series feature Bystronic's patented technology including the cutting head with integrated height sensor for consistent focus position, the intelligent nozzle control system, and the ByVision touchscreen control interface. All systems are designed for Industry 4.0 integration with OPC UA interfaces for real-time production data exchange.
Laser Source
Fiber laser technology with up to 15 kW power output
High electrical efficiency: 30–40% wall-plug efficiency
Low maintenance with 50,000+ hours laser diode life
Cutting Head
Automatic focus control for consistent cutting quality
Intelligent nozzle cleaning and collision protection
Quartz glass lens protection for extended service life
Motion System
Linear motor drives for high-speed, high-accuracy positioning
Dual drive systems for large-format machines
Positioning speed up to 200 m/min with 0.02 mm repeatability
Real-World Performance Metrics
Understanding the performance characteristics of Bystronic laser cutting machines helps justify investment and optimize production planning. The following metrics represent typical performance for Bystronic fiber laser systems.
Ideal Applications Across Industries
A Bystronic laser cutting machine delivers optimal results across diverse metal fabrication applications where precision, speed, and flexibility are essential.
Sheet metal fabrication: Panels, brackets, frames, covers, and custom fabricated parts requiring clean edges and tight tolerances.
Automotive manufacturing: Structural parts, chassis components, exhaust systems, and lightweight metal components for vehicle production.
Machinery manufacturing: Machine housings, equipment frames, mechanical components, and industrial panels requiring precision fitment.

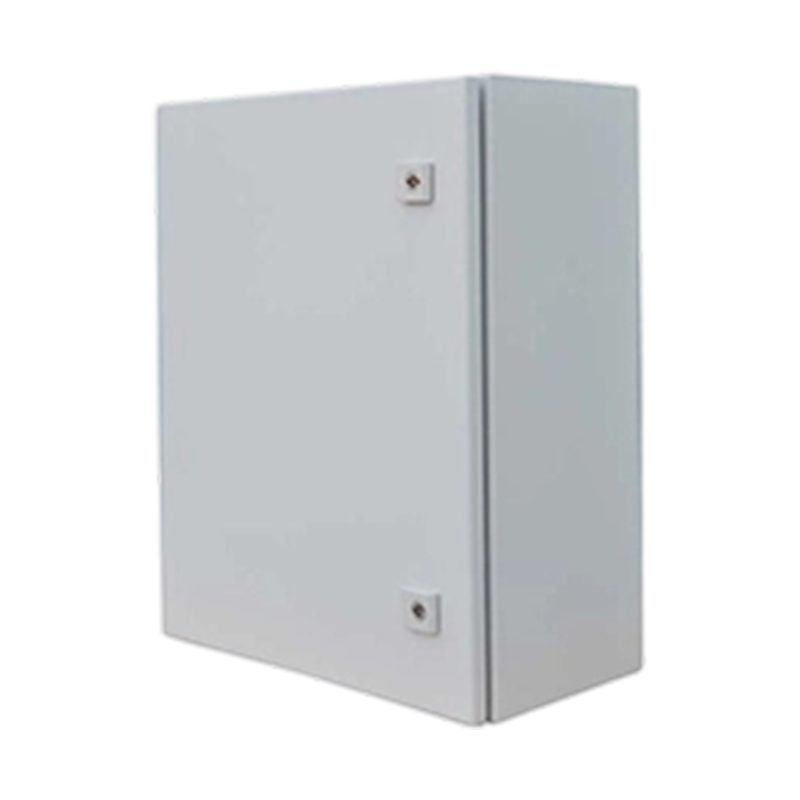

Electrical equipment: Electrical cabinets, enclosures, control panels, and switchgear components with clean, burr-free openings.
Construction and architecture: Building components, architectural metal panels, decorative elements, and structural steel parts.
Maintenance and Operational Reliability
Regular maintenance of Bystronic laser cutting machines ensures consistent performance and extends equipment service life. Daily maintenance includes cleaning protective windows and lenses, checking nozzle condition, and verifying gas supply pressures. Weekly maintenance involves inspecting the cutting head alignment, cleaning the cooling system filters, and checking the motion system lubrication. Monthly maintenance includes calibrating the height sensor, verifying cutting parameters, and inspecting all safety systems. Bystronic's remote service platform enables proactive monitoring — the system sends notifications about potential issues before they affect production. With proper maintenance, Bystronic laser cutting machines provide 15–20 years of reliable service in demanding industrial environments.
What types of materials can a Bystronic laser cutting machine process?
Bystronic fiber laser cutting machines process a wide range of materials including carbon steel (up to 30 mm), stainless steel (up to 25 mm), aluminum (up to 20 mm), copper (up to 8 mm), and brass (up to 6 mm). The exact thickness depends on laser power — higher power enables processing of thicker materials at optimal cutting speeds.
How does laser power affect cutting performance?
Laser power directly determines cutting speed and maximum material thickness. A 2 kW laser cuts 2 mm steel at approximately 40 m/min; a 6 kW laser cuts the same material at over 80 m/min. For 15 mm steel, a 2 kW laser may cut at 1 m/min while a 12 kW system achieves 5 m/min. Higher power also enables processing of reflective materials like aluminum and copper.
What is the typical return on investment for a Bystronic laser cutting machine?
Most metal fabricators achieve ROI within 18–36 months through increased productivity, reduced material waste, lower labor requirements, and expanded production capabilities. A machine costing $300,000–$600,000 can increase throughput by 2–3× compared to traditional cutting methods while reducing secondary processing costs.
Does Bystronic offer training and support for new installations?
Yes, Bystronic provides comprehensive training packages including on-site installation, operator training (typically 3–5 days), programming training, and ongoing technical support through their global service network. Remote diagnostics and cloud-based monitoring are also available for proactive maintenance.
